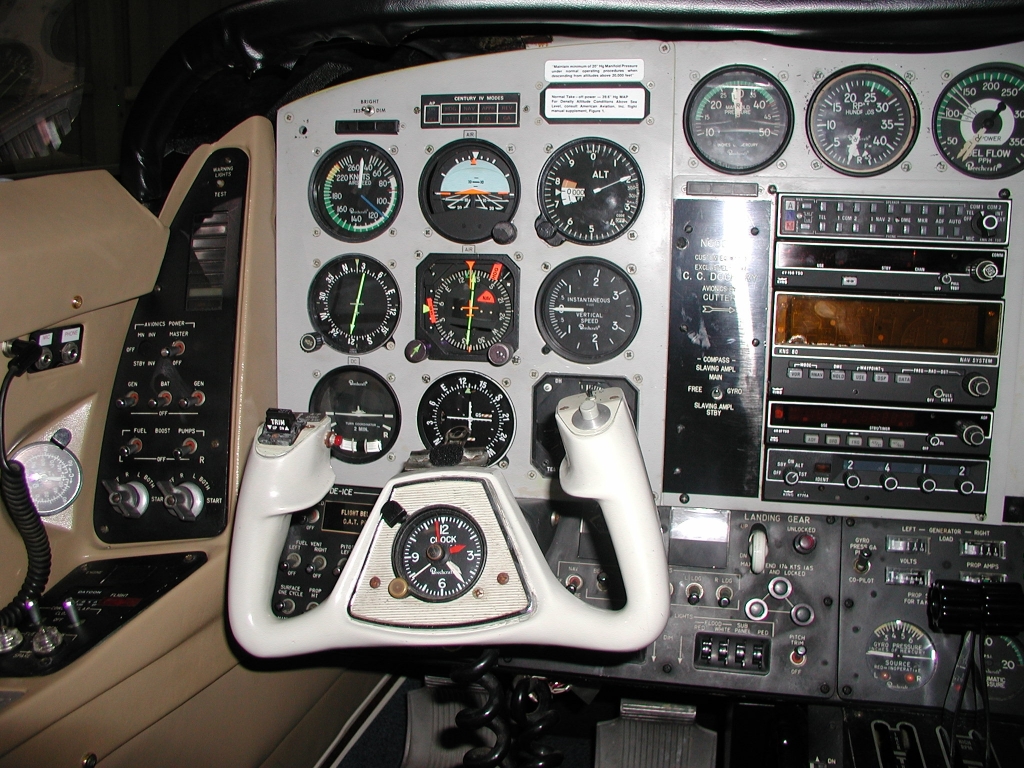

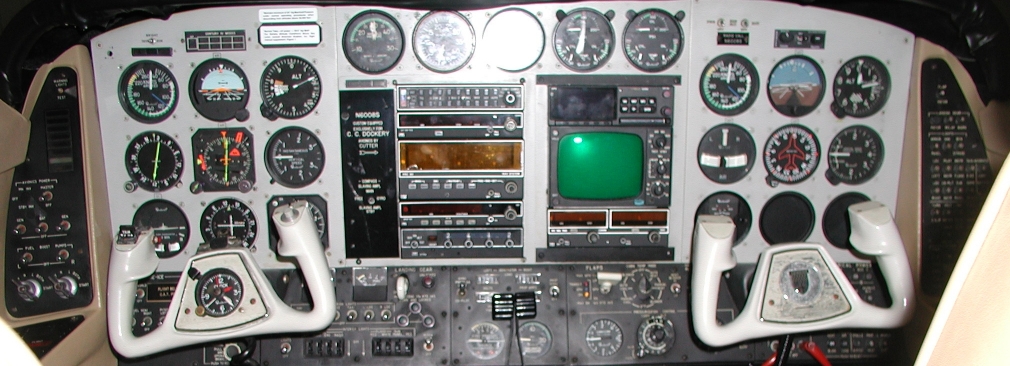

Before Photo
|
|
|
|
|
|
|
|

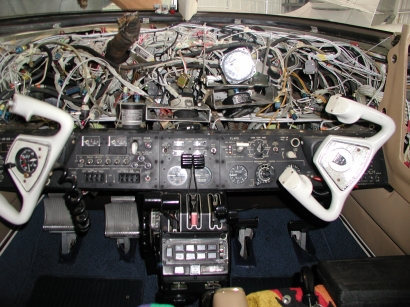

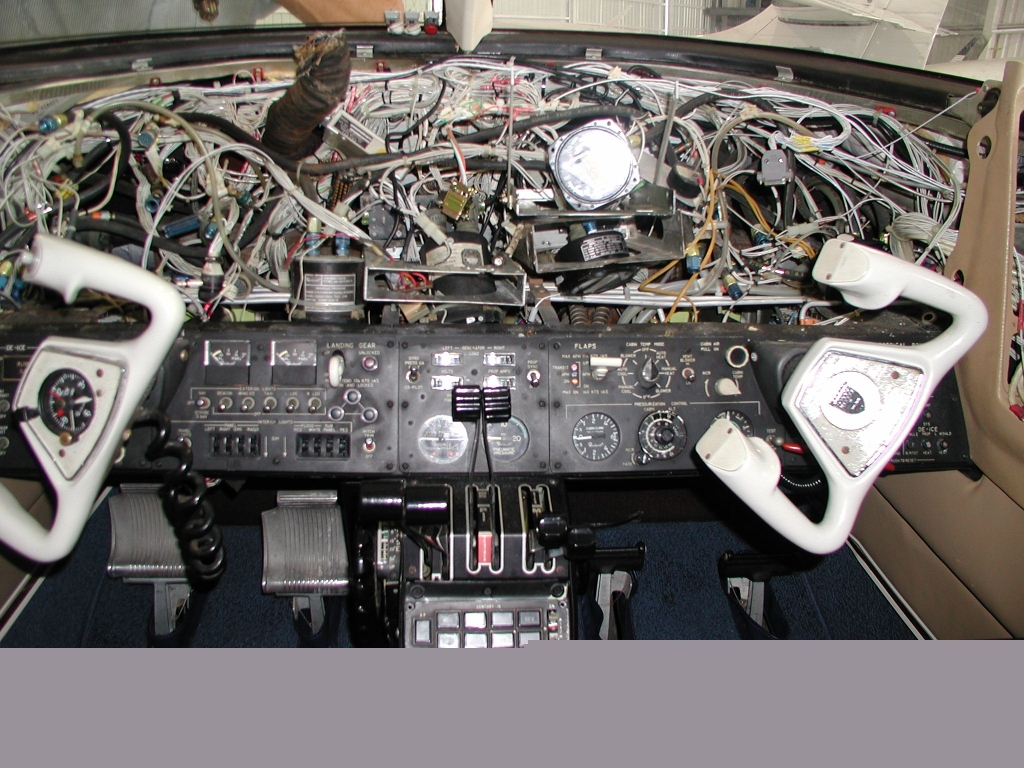

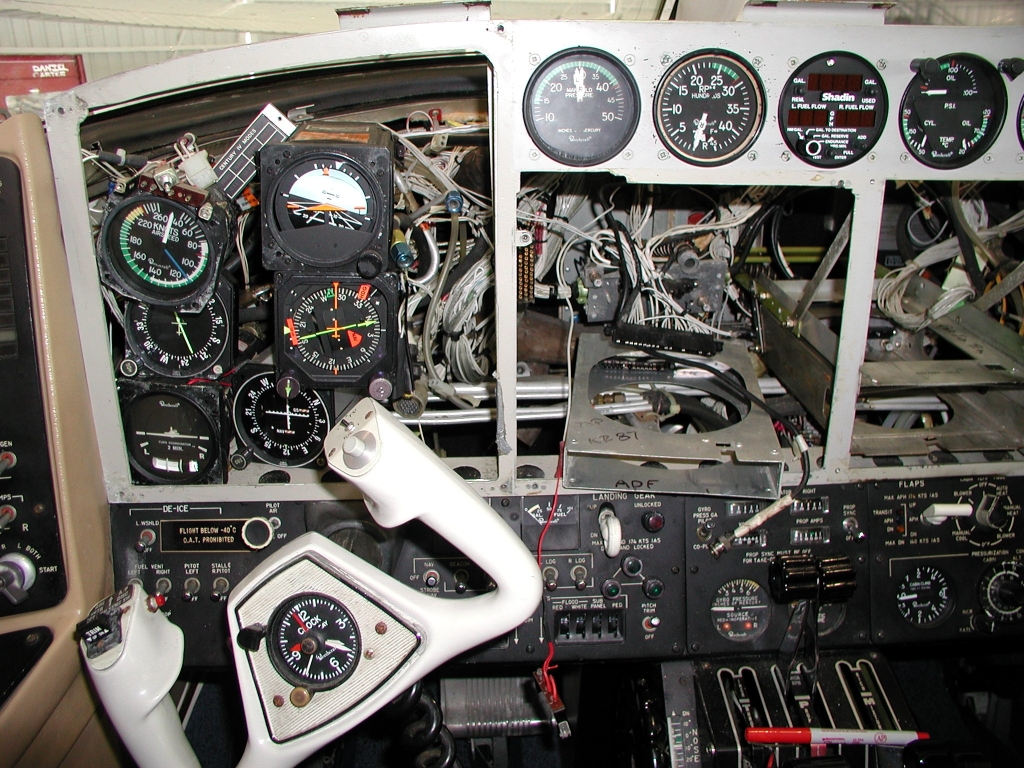

Instrument panels
removed.
|
|
|

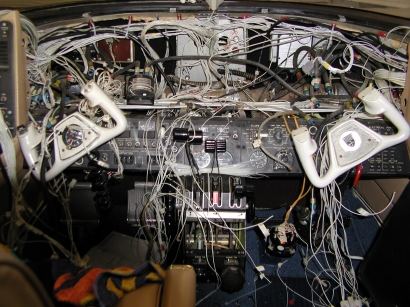

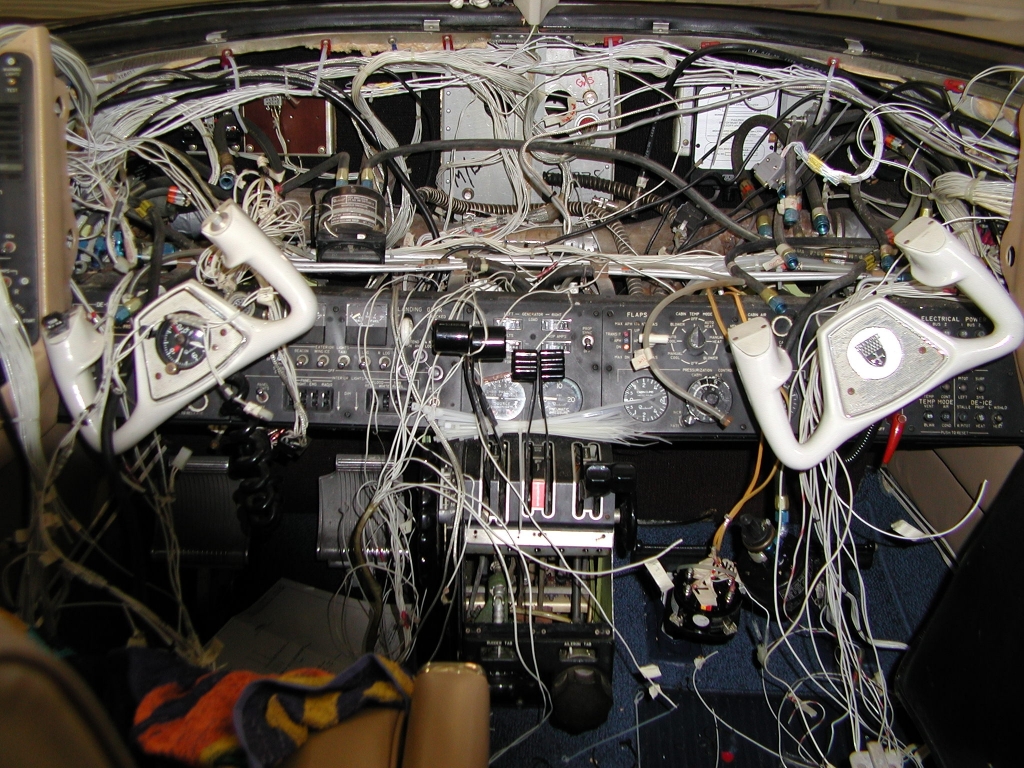

After all the instrument
panels were removed this is what was left... a big mess of wires.
|
|
|

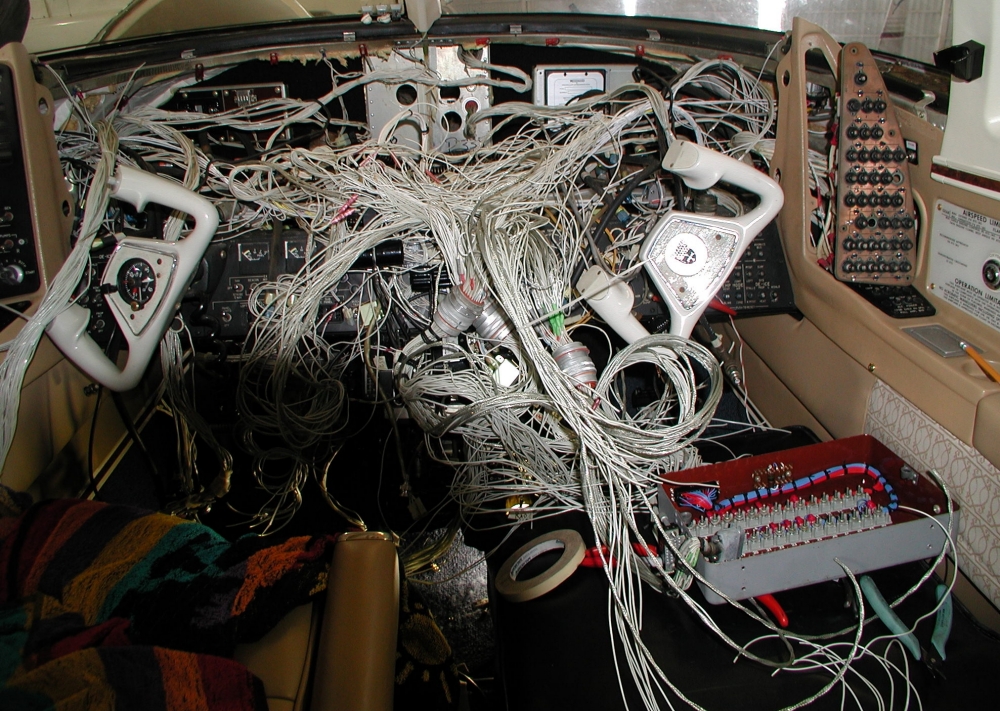

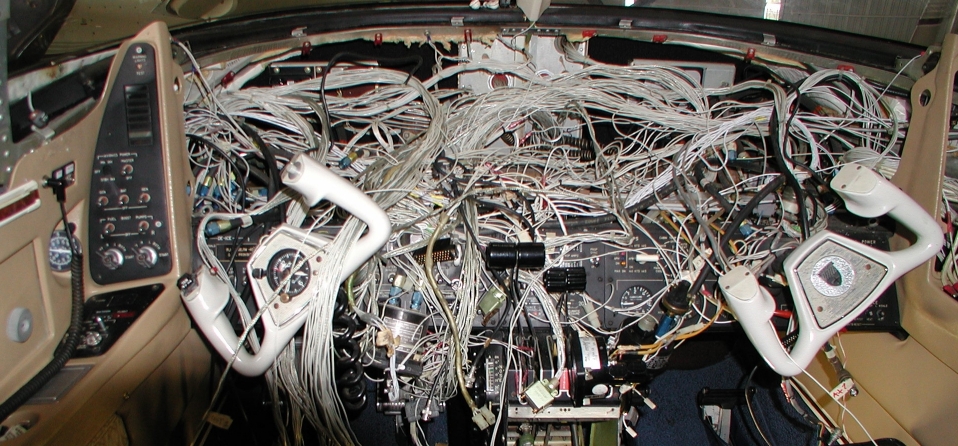

This is after all the wiring
harnesses were cut loose inside.
|
|
|
There was a remote junction
box in the nose that was more than likely unneeded. Half of the wires
going to the junction box were cut and stowed during a previous install,
so we decided to remove any unnecessary wiring. This was most easily
accomplished by removing the harness and junction box in the nose
and bringing it into the cabin and removing wires one at a time. (Junction
box from nose in lower right corner)
|
|
|
After we were all done, this is all
the wiring that was not avionics related. |
|
|
|
|
